When choosing cleanroom wipes, we often focus on the material, absorbency, and cleanliness. But there is another detail that can make a difference: the edge treatment.

Even  when two wipes are made from the same material, different cutting methods can affect fiber release, lint control edge consistency, and overall wiping performance.

For industries such as semiconductor manufacturing, optics, LCD, PCB, and precision electronics, the right edge treatment can be an important part of contamination control.

Why Does the Edge Matter?

During wiping, the edge f the wipe frequently comes into contact with the surface being cleaned. If the edge contains loose or exposed fibers, these fibers may be released during use and potentially become a source of contamination.

That is why the cutting method should be considered together with the wipe material and cleanliness requirements of your application.

3 Common Cutting Methods

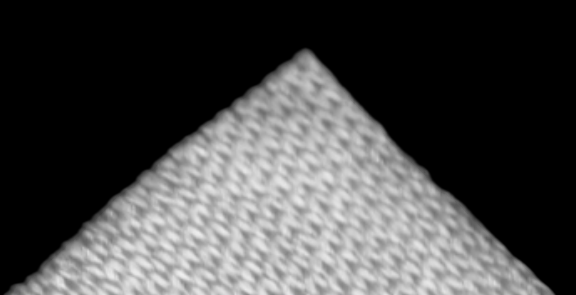

1. Cold Cut

The wip is cut directly with a blade without sealing the edge.

• ·Cost-effective
• ·Soft edge
• ·Suitable for general cleaning
• ·May have more exposed fibers and lint
•


Consideration: Since the edge is not sealed, it may have more exposed fibers compared with laser or ultrasonic cutting.

Cold-cut wipes can be a practical option when cost and general cleaning performance are the main priorities.

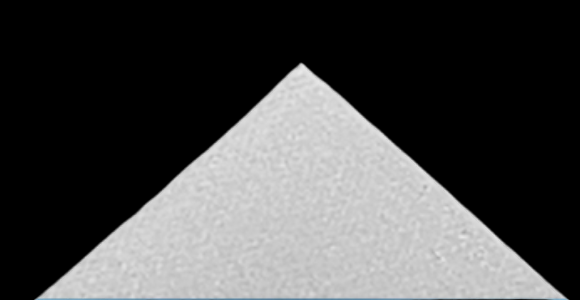

2. Laser Cut

The edge is cut and partially sealed by heat, helping reduce loose fibers.

• ·Cleaner and more consistent edge
• ·Better fiber control
• ·Suitable for semiconductor, PCB, LCD, optical, and electronics applications
• ·A good balance between cleanliness and cost
•


Laser-cut wipes are commonly used in semiconductor, PCB, LCD, optical, and precision electronic applications, where cleanliness and fiber control are import.

For many applications, laser cutting offers a good balance between cleanliness, performance, and cost.

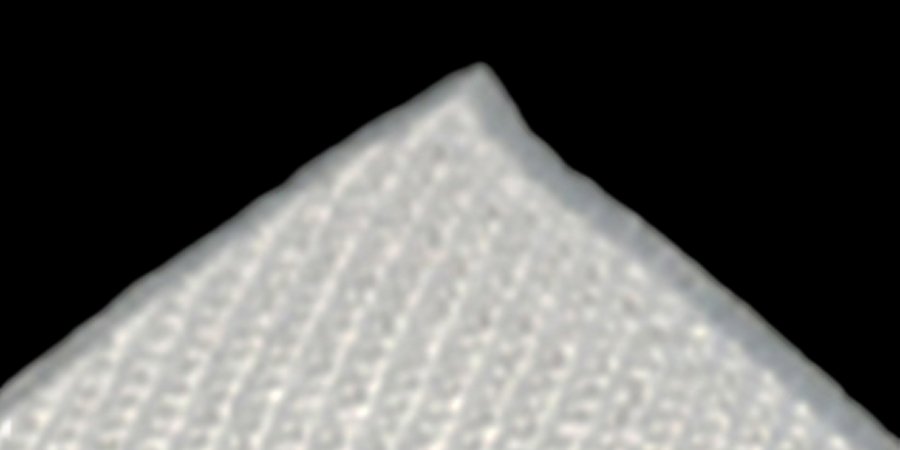

3.Ultrasonic Cut

High-frequency ultrasonic vibration is used to cut and seal the edge.

• ·Smooth and consistent edge
• ·Good control of loose fibers and particles
• ·Suitable for high-cleanliness applications and sensitive surfaces
•


Ultrasonic cutting is often considered when the application has stricter cleanliness requirements or requires better control of edge fibers.

Which One Should You Choose?

There is no single cutting method that fits every application.

Cleanroom class: Higher cleanliness requirements may require better control of particles and fibers.

Wiping surface: Sensitive surfaces such as optical components, semiconductor parts, and precision electronics may require better edge control.

Cleaning requirements: Consider your process requiremens for particles, lint, residues, and overall cleanliness.

Budget: Cold cutting can be more economical, while laser and ultrasonic cutting provide additional edge control for more demanding applications.

The Edge Is Only One Part of the Equation

While edge treatment is important, it is not the only factor that determines cleanroom wipe performance.

The wipe material, particle level, absorbency, pre-washing, cleanroom processing, and packaging also play important roles in contamination control.

A good cleanroom wipe should therefore be selected based on the complete requirements of your application, rather than on specification alone.

Looking for the Right Cleanroom Wipes?

Ultimately, the right choice depends on your cleanroom class, wiping furface, contamination-control requirements, and budget.

At Kingclean Technology, we can provide cleanroom wipes with different materials, size, and edge treatments to meet specific application requirements.

Need help choosing the right cleanroom wipes? Contact us to discuss your requirements.
